Focusing on non - standard welding scenarios in complex environments, the product can be remotely moved to flexibly meet operation requirements without relying on fixtures. The Loyalty AI Welding System supports programming - free quick start, can automatically identify workpiece contours and intelligently track arc trajectories, and adapts to scenarios with technology, making welding operations in complex environments more controllable.

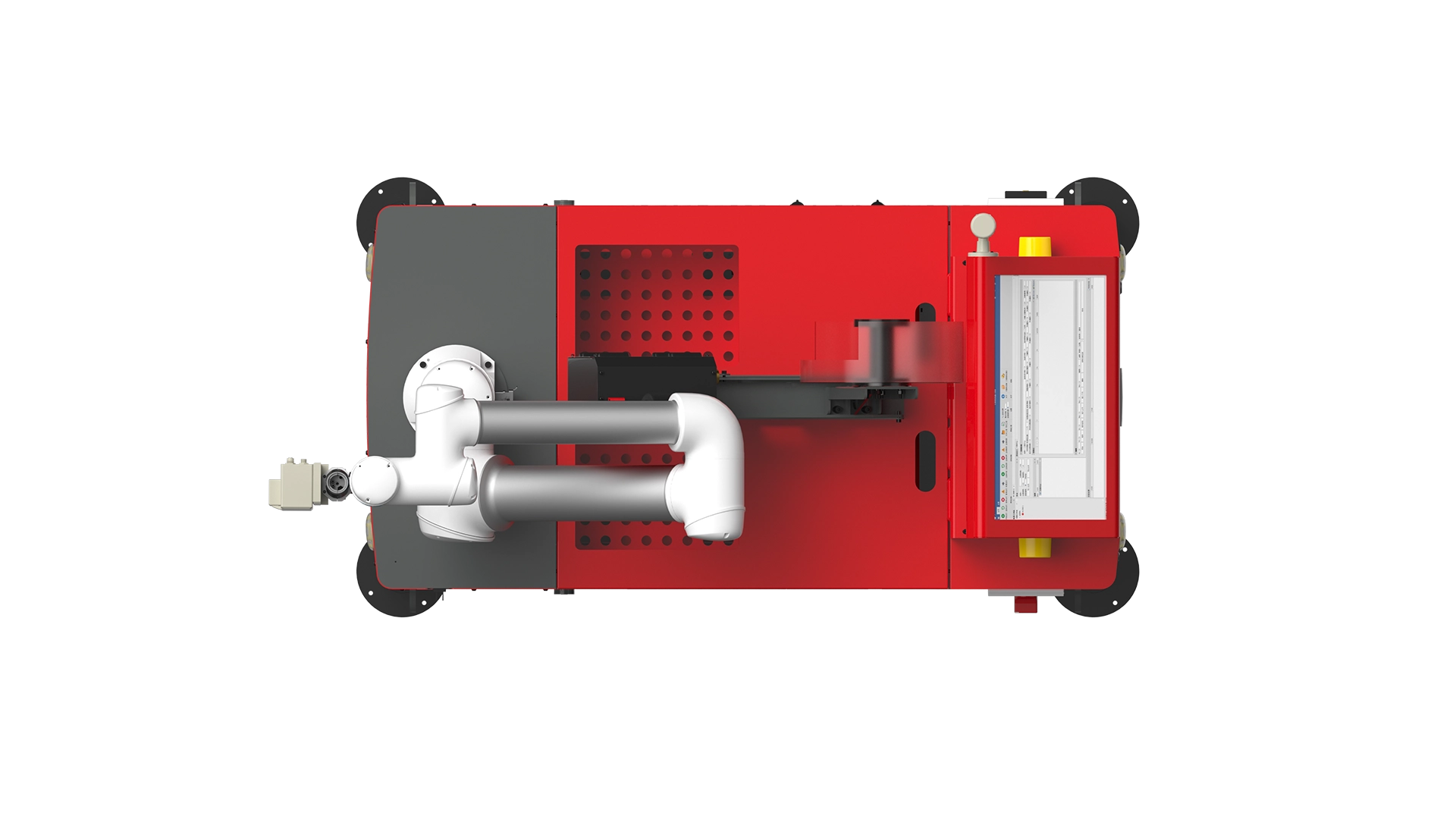

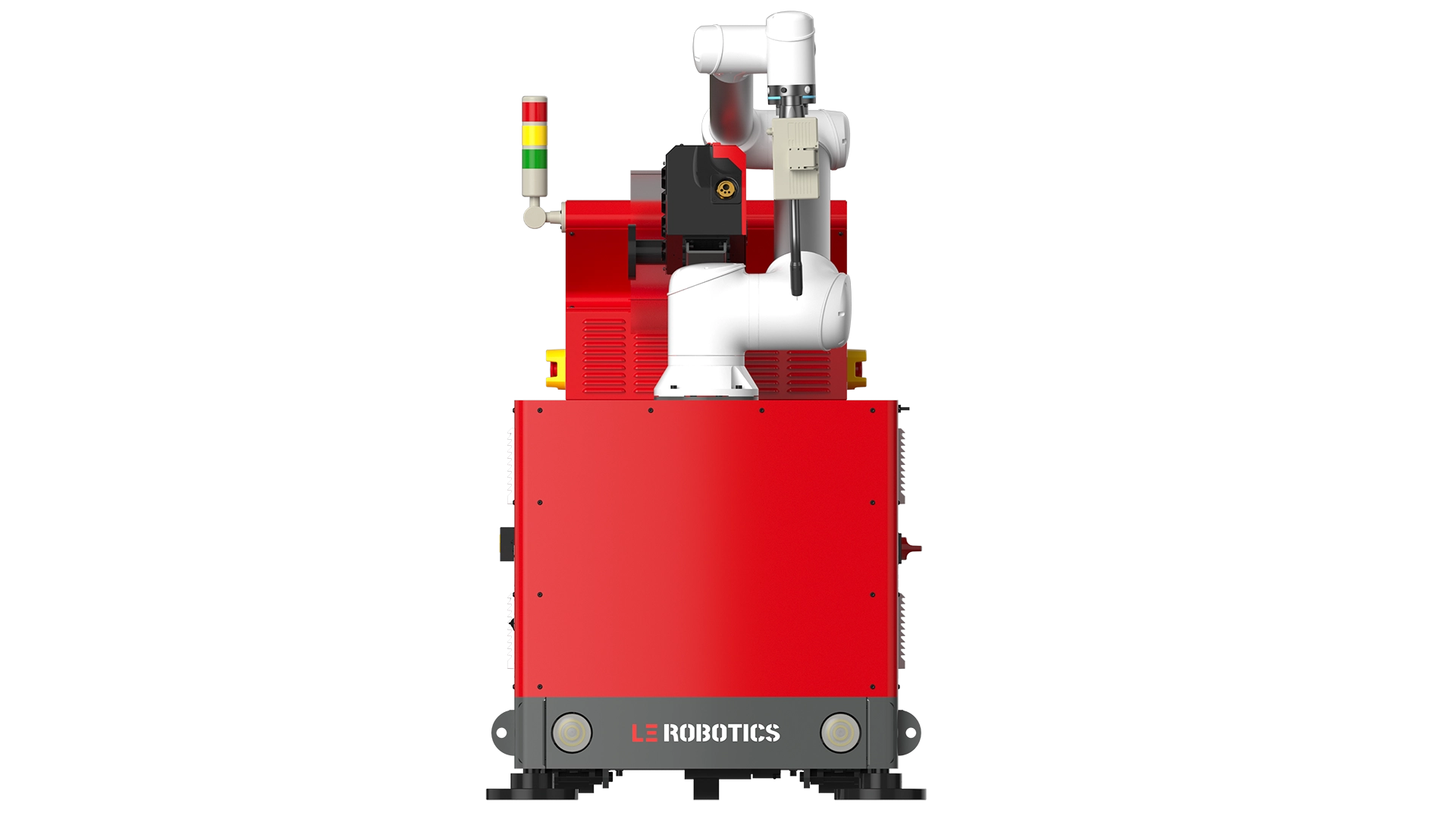

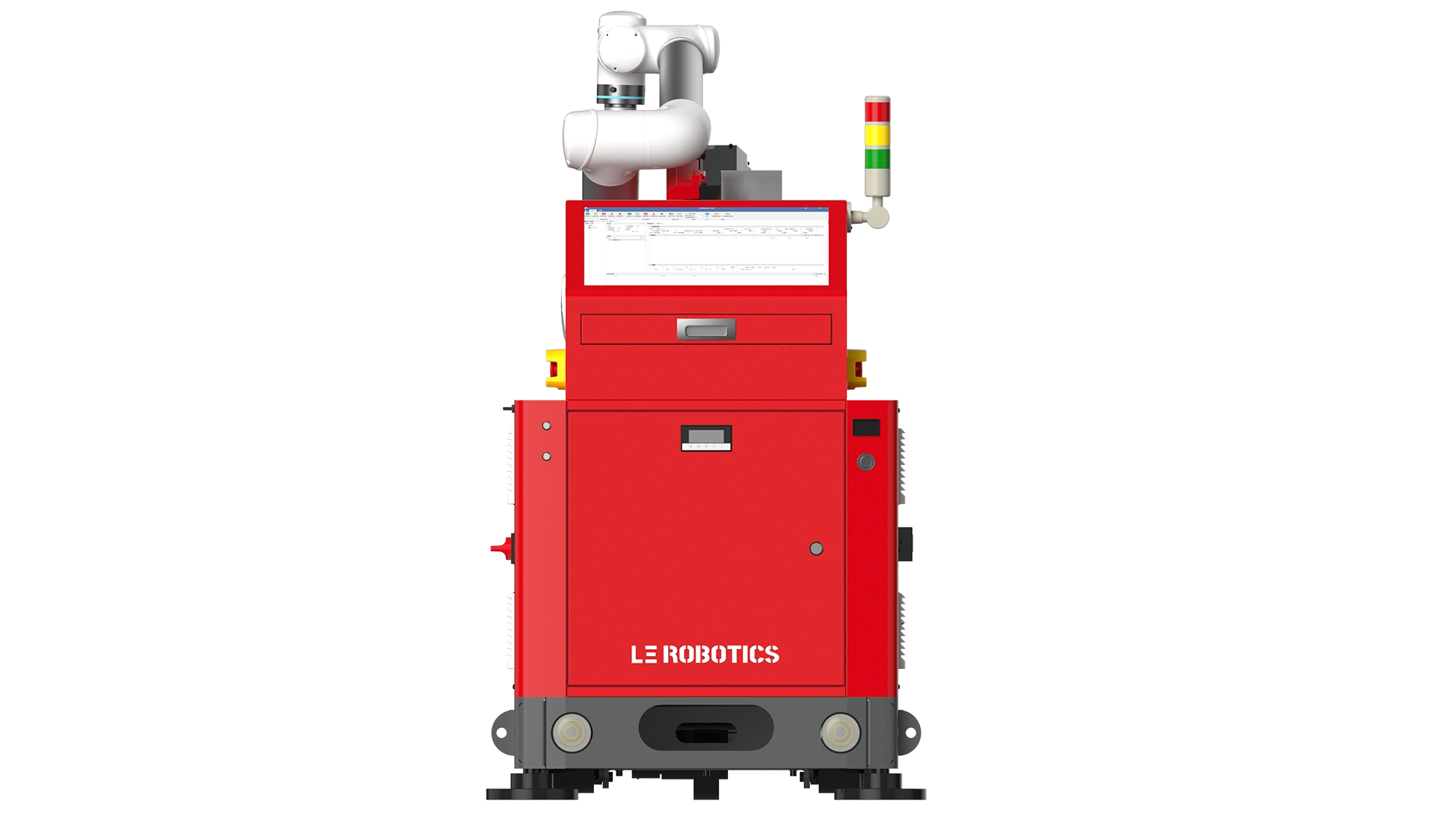

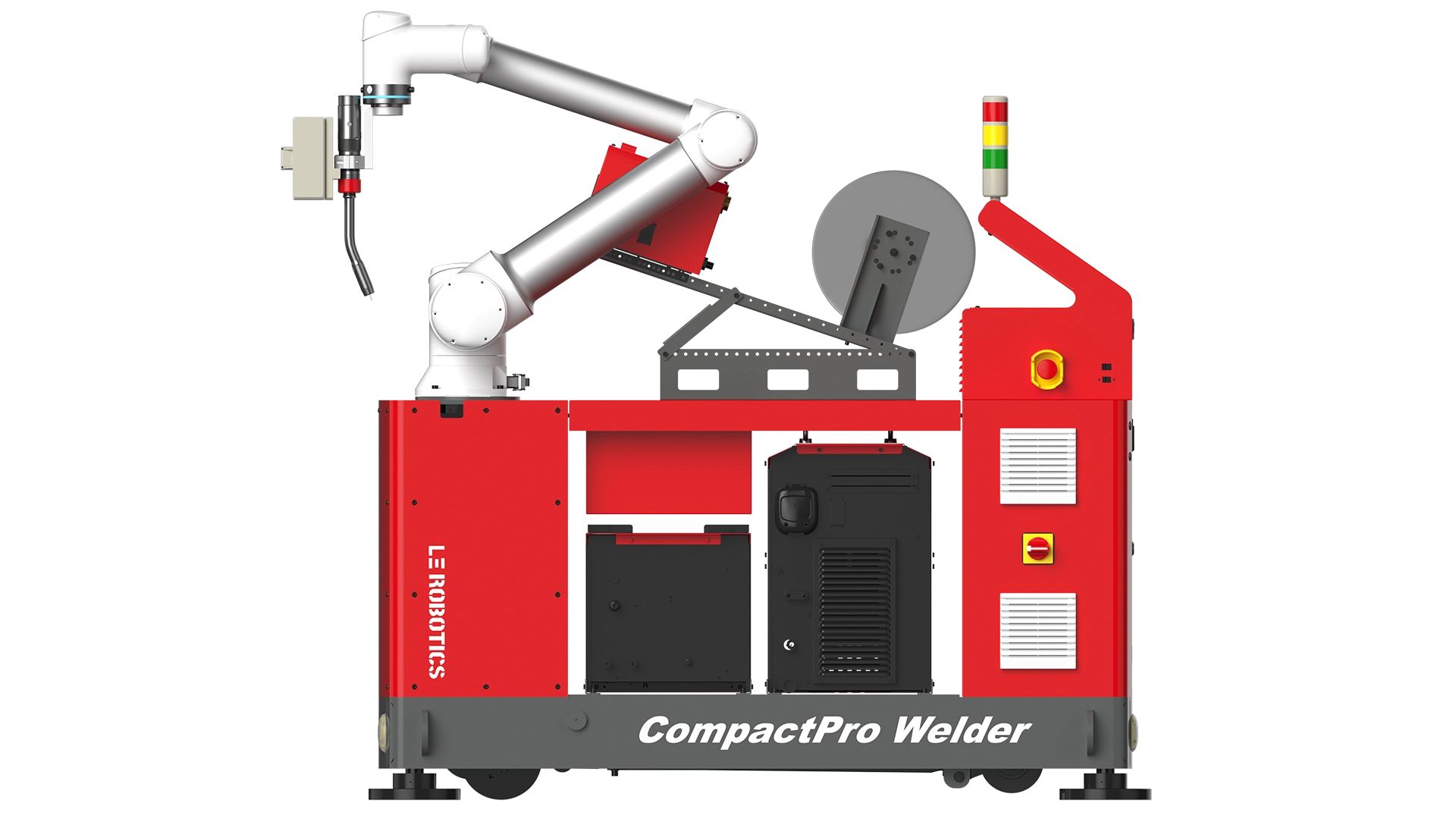

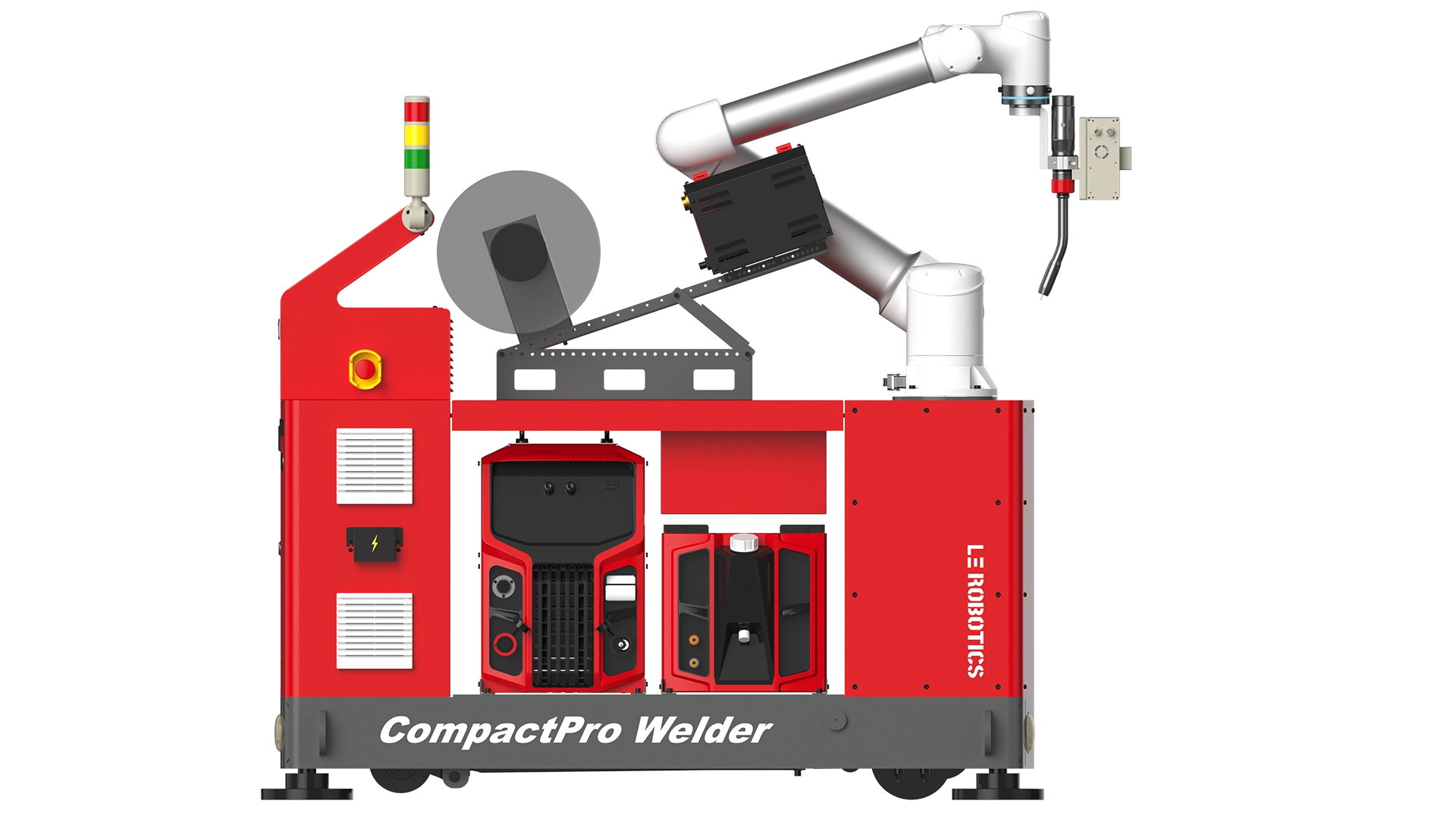

Loyalty AI Welding System
Programming-free and Teaching-free
One-click Weld Seam Extraction
Automatic Calibration
Intelligent Arc Tracking
Reverse Modeling without Drawings
3D Drawing Import
Digital Twin
Automatic Recognition of Common - Shaped Workpieces
Multi - Layer and Multi - Pass Welding Process
Offline Simulation Functionality
RX Welding Process
| Category | Item | Parameters |
| Basic Parameters | Total Power | 37KVA |
| Operating Power Supply | Three-Phase Five-Wire System 3x380 V±10%/50 Hz | |
| Operating Power Supply Mode | Quick-Connect Power Supply | |
| Equipment Weight | 2200 kg (Slight Differences in Selection) | |
| Overall Dimensions (L×W×H) | 3500mmx1500mmx2000 mm | |
| Vision Performance | Vision Accuracy | ≤0.5 mm |
| Scanning Frame Rate | 2000 Frames/Second | |
| Standard Vision (Equipped) | RX01 | |
| Battery Performance | Battery Voltage | 48 V |
| Battery Capacity | 73ah | |
| Travel Power Supply | DC48 V | |
| Motion Performance | Robot Arm Reach | 2010 mm (Slight Differences in Selection) |
| Travel Drive | Three-Wheel Drive | |
| Control Method | Wireless Remote Control | |
| Travel Speed | 2km/h | |
| Battery Range | 10km | |
| Lift Stroke | 1000 mm | |
| Traverse Stroke | / | |
| Application Environment | Ambient Temperature | 0°℃ to +45°℃ (Operating); -20°℃ to +60°℃ (Transport and Storage) |
| Relative Humidity | ≤90％RH(No Condensation) |
