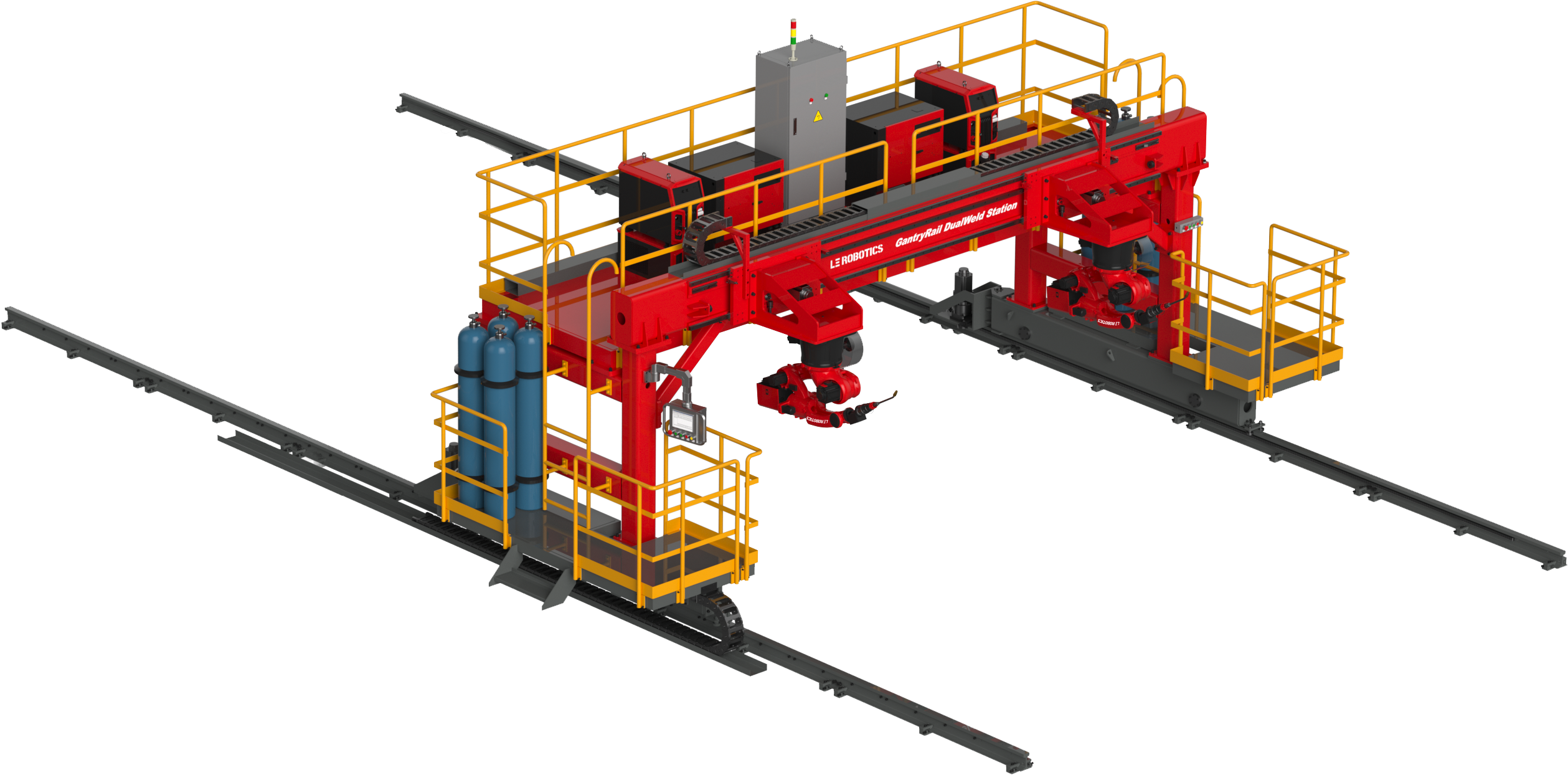

Suitable for long workpieces with large cross-section (such as U - rib plate girders, bridge girders). It supports multi degree of freedom selection, and multiple external axes expand the motion space. Equipped with the Loyalty AI Welding System, it realizes programming - free and teaching - free operation, with functions like one - click weld seam extraction, automatic calibration, and intelligent arc tracking. Two robots collaborates in operation, which not only improves production efficiency but also reduces workpiece welding deformation, ensuring quality. The configuration is flexible, facilitating efficient welding of large components.
Loyalty AI Welding And Cutting System
Programming-free and Teaching-free
One-click Weld Seam Extraction
Automatic Calibration
Intelligent Arc Tracking
Reverse Modeling without Drawings
3D Drawing Import
Digital Twin
Automatic Recognition of Common - Shaped Workpieces
Multi - Layer and Multi - Pass Welding Process
Offline Simulation Functionality
RX Welding Process
| Category | Item | Parameter |
Basic Parameters | Degrees of Freedom | 8 Axes + 8 Axes+ 1 SharedRail Axis（Optional） |
| Robot Configuration Quantity | Dual Robots(Collaborative) | |
| Maximum End Load | 12 kg+12 kg | |
| Robot Arm Reach | R=1465 mm | |
| Rail Length | ≤30 m | |
| Rail Gauge | ≤6 m | |
| Gantry Beam Height | Customized to the height of customer’s workpieces | |
| Track X-axis Movement Speed | ≥20 m/min | |
| Crossbeam Y-axis Movement Speed | ≥12 m/min | |
| Lift Z-axis Movement Speed | ≥8 m/min | |
Vision Performance | Vision Accuracy | ≤0.5 mm |
| Scanning Frame Rate | 2000 Frames/Second | |
Battery Performance | Total Machine Power | 61 kw |
| Power Supply | Three-Phase Five-Wire System 3x380 V±10%/50 Hz | |
Application Environment | Ambient Temperature | 0°℃ to +45°℃ (Operating); -20°℃ to +60°℃ (Transport and Storage) |
| Relative Humidity | ≤90％RH(No Condensation) |
