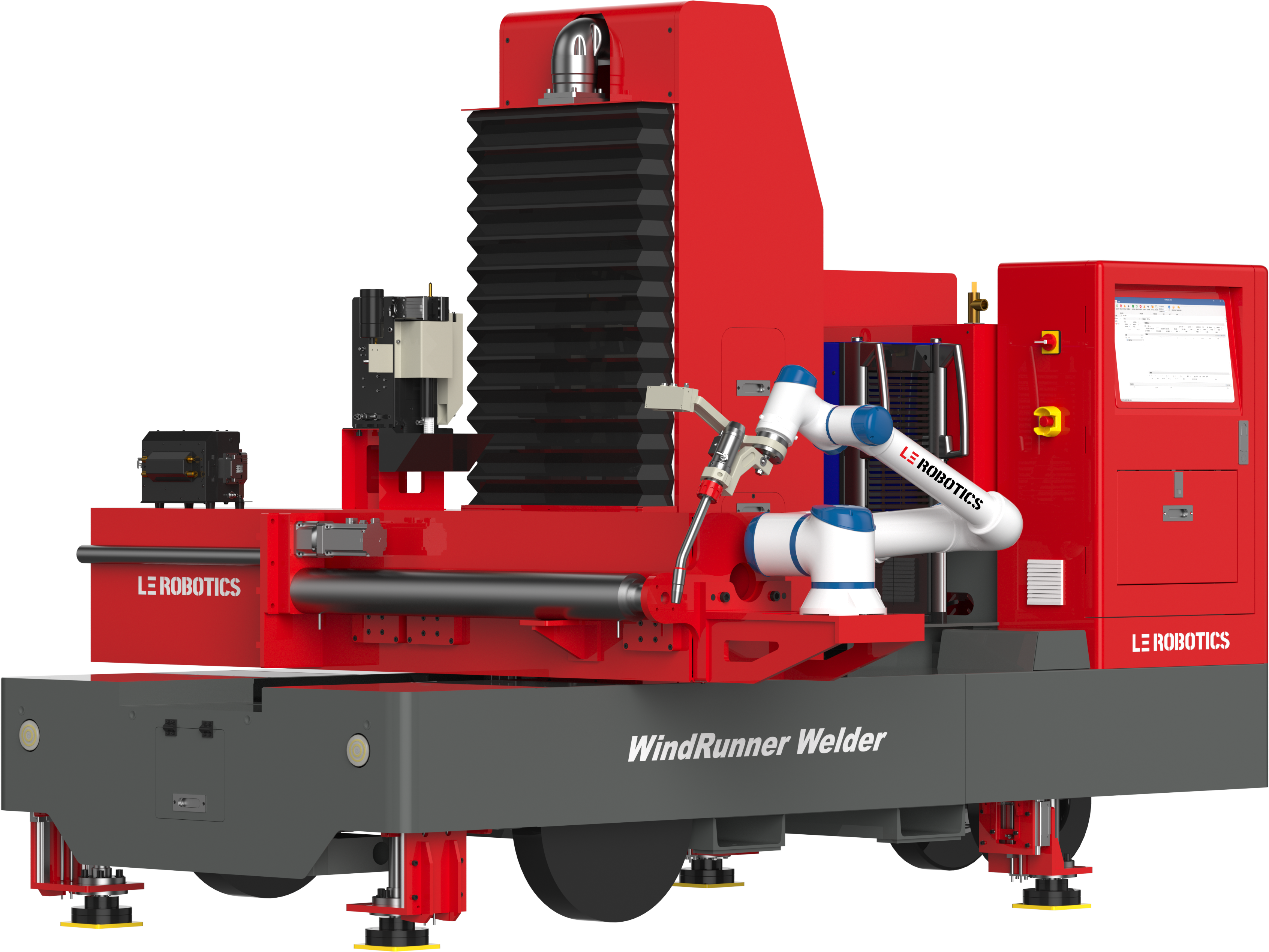

WindRunner Welder (Traverse Collaboration)

Focusing on pressure vessels, petrochemical equipment, etc., it is equipped with the Loyalty AI Welding System, enabling programming - free and teaching - free operations. It has functions such as one - click weld seam extraction and automatic calibration, and supports  reverse modeling without drawings and 3D data import. The additional external axes for vertical lifting and traversing greatly expand the working range. It can automatically recognize workpieces and adapt to multiple welding processes, ensuring high mobility as well as  welding quality.

Loyalty AI Welding System
  • Programming-free and Teaching-free

  • One-click Weld Seam Extraction

  • Automatic Calibration

  • Intelligent Arc Tracking

  • Reverse Modeling without Drawings

  • 3D Drawing Import

  • Digital Twin

  • Automatic Recognition of Common - Shaped Workpieces

  • Multi - Layer and Multi - Pass Welding Process

  • Offline Simulation Functionality

  • RX Welding Process

CategoryItemParameters
Basic ParametersTotal Power37KVA
Operating Power SupplyThree-Phase   Five-Wire System 3x380 V±10%/50 Hz
Operating Power Supply ModeQuick-Connect   Power Supply
Equipment Weight2200   kg (Slight Differences in Selection)
Overall Dimensions (L×W×H)3500mmx1500mmx2000 mm
Vision PerformanceVision   Accuracy≤0.5 mm
Scanning Frame Rate2000   Frames/Second
Standard Vision (Equipped)RX01
Battery Performance

Battery   Voltage48   V
Battery Capacity73ah
Travel Power SupplyDC48   V
Motion PerformanceRobot Arm Reach1300 mm(collaborative robot)
Travel DriveThree-Wheel   Drive
Control MethodWireless   Remote Control
Travel Speed2km/h
Battery Range

10km
Lift Stroke1000   mm
Traverse   Stroke1800 mm
Application EnvironmentAmbient   Temperature0°℃   to +45°℃ (Operating); -20°℃ to +60°℃ (Transport and Storage)
Relative Humidity≤90%RH(No   Condensation)
