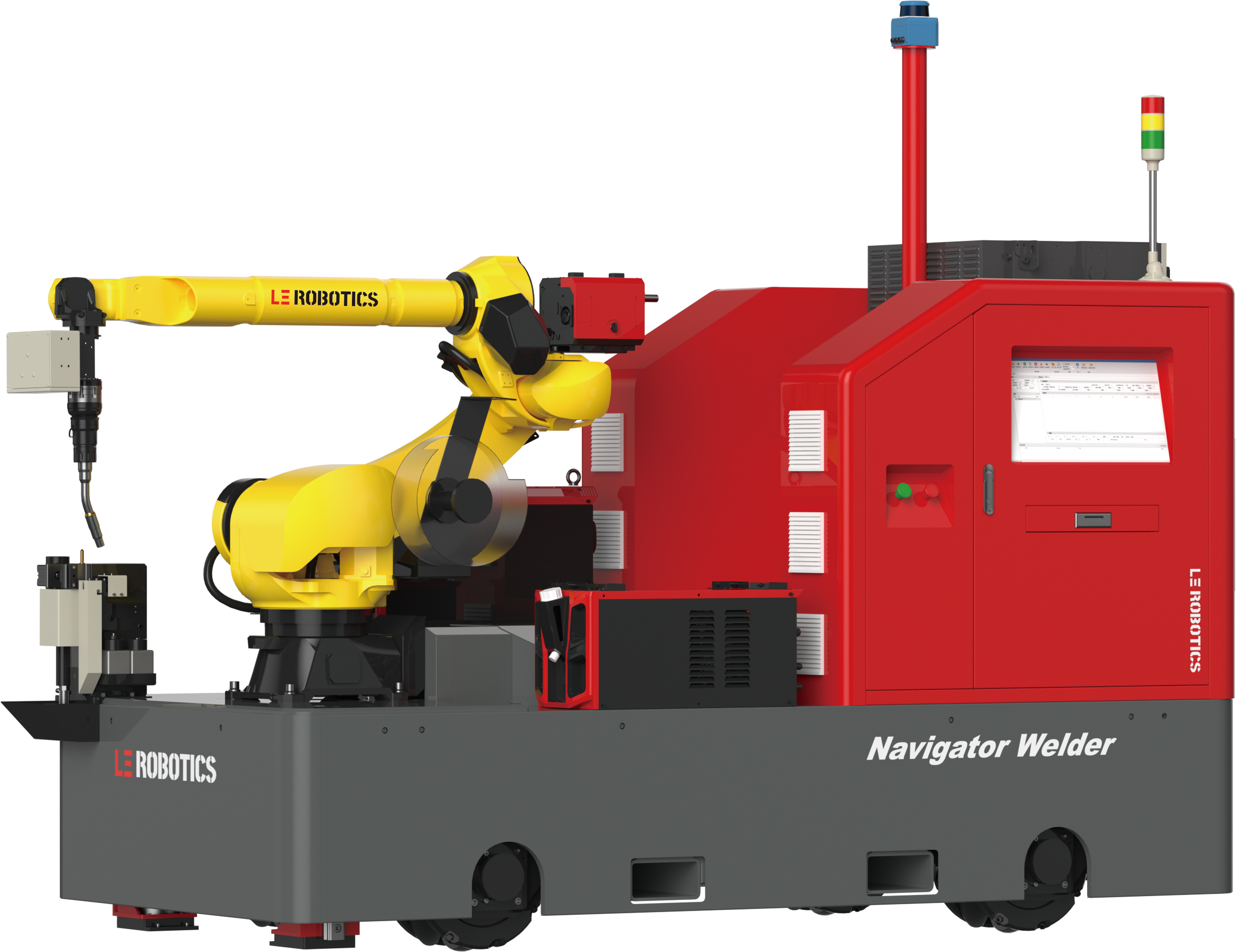

Targeting highly flexible and intelligent collaborative complex welding scenarios, it adopts Mecanum wheels paired with LiDAR and supports remote control via mobile APP. The Loyalty AI Welding System enables modeling without drawings and digital twin functions. Through a mobile phone, it remotely commands automatic workpiece localization and path planning, adapting to "small-batch, high-customization" precision production needs and helping enterprises easily tackle complex welding operations.
Loyalty AI Welding System
Programming-free and Teaching-free
One-click Weld Seam Extraction
Automatic Calibration
Intelligent Arc Tracking
Reverse Modeling without Drawings
3D Drawing Import
Digital Twin
Automatic Recognition of Common - Shaped Workpieces
Multi - Layer and Multi - Pass Welding Process
Offline Simulation Functionality
RX Welding Process
| Category | Item | Parameter |
| Basic Parameters | Total Power | 51KVA |
| Operating Power Supply | Three-Phase Five-Wire System 3x380 V±10%/50 Hz | |
| Operating Power Supply Mode | Cable Reel | |
| Equipment Weight | 3800 kg(Slight Differences in Selection) | |
| Overall Dimensions (L×W×H) | 3400mmx1500mmx2400 mm | |
| Vision Performance | Vision Accuracy | ≤0.5 mm |
| Scanning Frame Rate | 2000 Frames/Second | |
| Standard Vision (Equipped) | RX01 | |
| Motion Performance | Robot Arm Reach | 2272 mm(Slight Differences in Selection) |
| Travel Drive | Mecanum Wheel | |
| Control Method | Lidar | |
| Travel Speed | 1km/h | |
| Lift Stroke | 700 mm（Optional Configurations） | |
| Application Environment | Ambient Temperature | 0°℃ to +45°℃ (Operating); -20°℃ to +60°℃ (Transport and Storage) |
| Relative Humidity | ≤90％RH(No Condensation ) |
