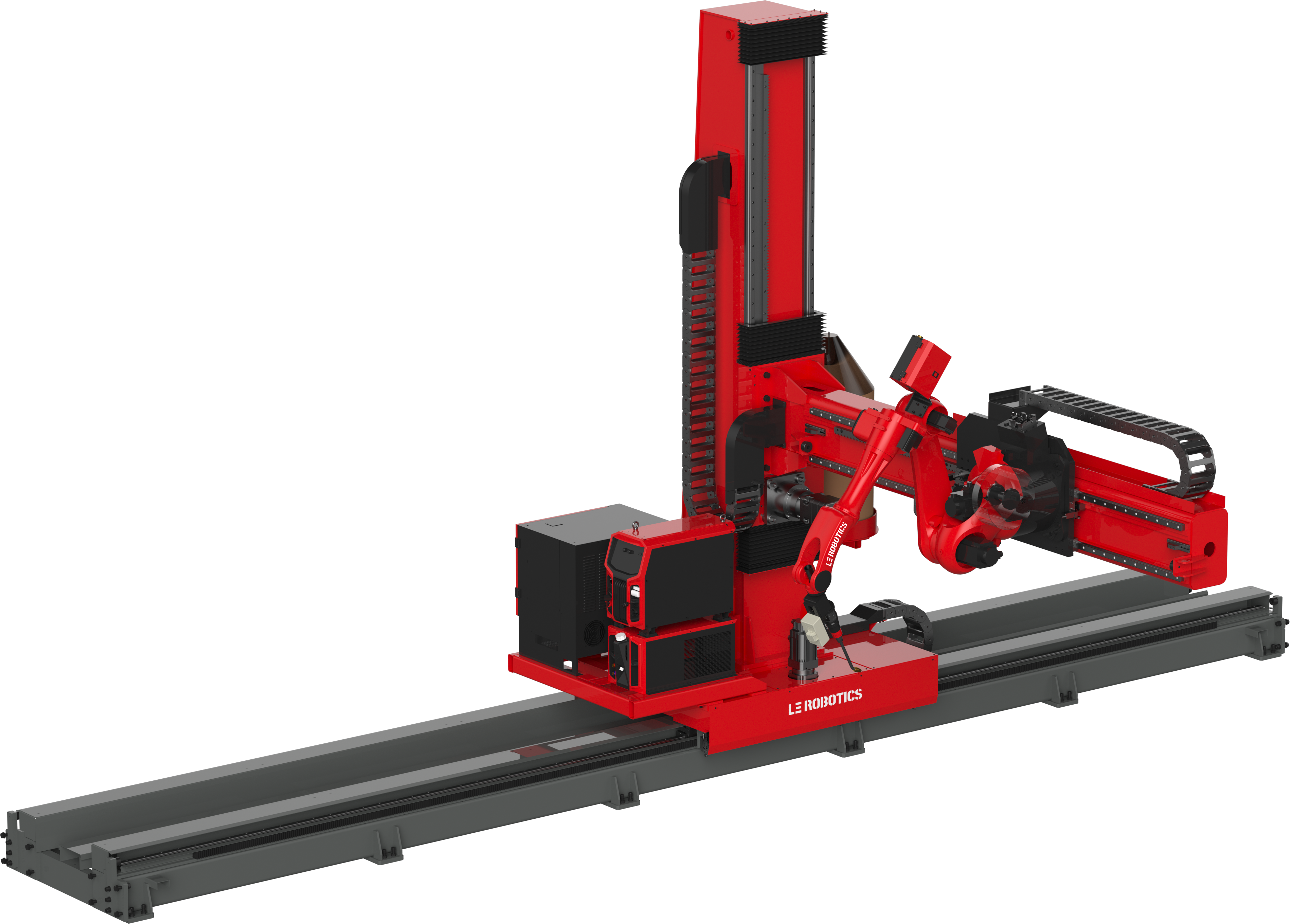

Suitable for long workpieces with large cross-section (such as H-Beam, derrick panels). It supports 7-9 optional degrees of freedom and can achieve welding in multiple positions like flat, vertical, and ship-shaped. Equipped with the Loyalty AI Welding System, it has functions such as one-click weld extraction, automatic calibration, and intelligent arc tracking. It supports reverse modeling without drawings and digital twin, can automatically recognize common workpieces, adapts to multi-layer and multi-pass processes, ensures consistent welding quality, and efficiently tackles complex welding scenarios.
Loyalty AI Welding And Cutting System
Programming-free and Teaching-free
One-click Weld Seam Extraction
Automatic Calibration
Intelligent Arc Tracking
Reverse Modeling without Drawings
3D Drawing Import
Digital Twin
Automatic Recognition of Common - Shaped Workpieces
Multi - Layer and Multi - Pass Welding Process
Offline Simulation Functionality
RX Welding Process
| Category | Item | Parameter |
| Basic Parameters | Degrees of Freedom | 9 Axes(Optional) |
| Maximum End Load | 12 kg | |
| Robot Arm Reach | R=1465 mm | |
| Ground Rail Length | 6 m/8 m/12 m/14 m/16 m | |
| Ground Rail X-axis Movement Speed | ≥20 m/min | |
| Cantilever Y-axis Movement Speed | ≥12 m/min | |
| Column Z-axis Movement Speed | ≥8 m/min | |
| Vision Performance | Vision Accuracy | ≤0.5 mm |
| Scanning Frame Rate | 2000 Frames/Second | |
| Battery Performance | Total Machine Power | 36 kw |
| Power Supply | Three-Phase Five-Wire System 3x380 V±10%/50 Hz | |
| Application Environment | Ambient Temperature | 0°℃ to +45°℃ (Operating); -20°℃ to +60°℃ (Transport and Storage) |
| Relative Humidity | ≤90％RH(No Condensation) |
