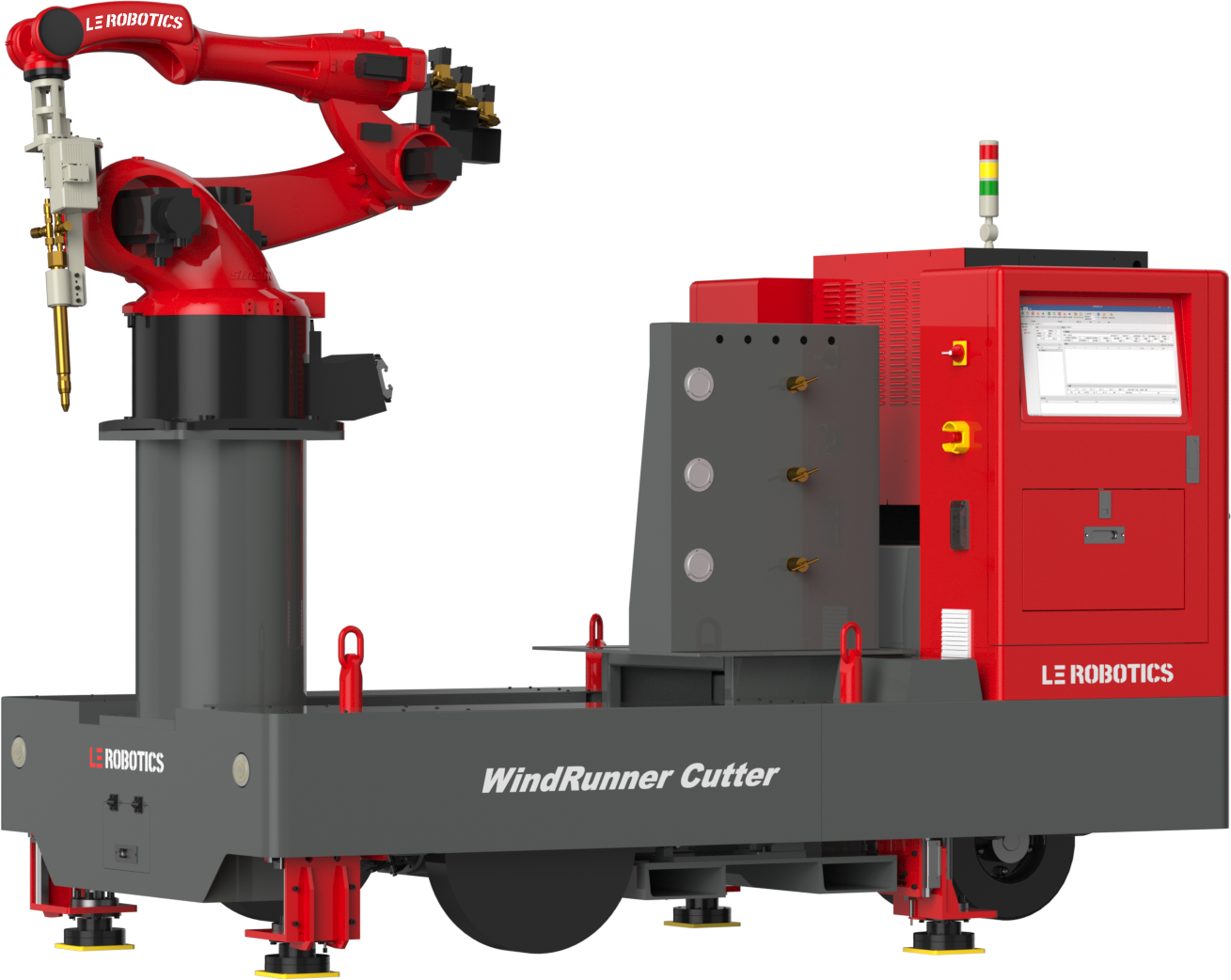

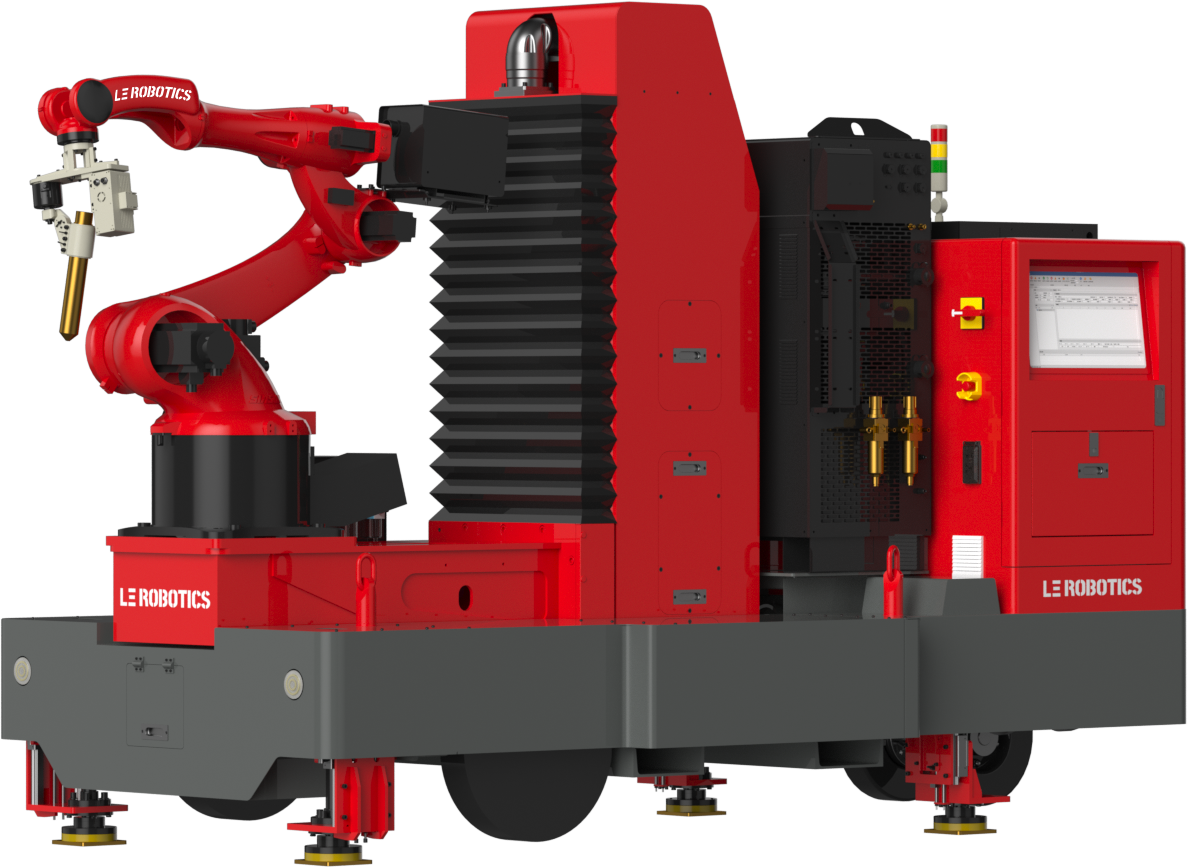

Targeting the multi - process adaptation demands in industrial cutting scenarios, it integrates core technologies like 3D vision, differential drive, and wireless remote control, achieving dual - mode synergy between high - speed, precise plasma cutting and stable flame cutting of thick plates. By autonomously scanning workpieces to plan spatial curve paths, it accommodates flexible workpiece placement, accurately matching complex irregular and regular cutting scenarios. It frees enterprises from process boundaries, reduce equipment switching costs, and promote the upgrade of industrial cutting processes towards efficiency, intelligence, and flexibility.
Loyalty AI Welding And Cutting System
Vision Calibration
Deformation Compensation
Groove Editing
Groove Nesting
Secondary Blanking
Bend Pipe Cutting
Head Cutting
Branch Pipe Cutting
Tapered Pipe Cutting
Arbitrary Curved Surface Cutting
RX Cutting Process
| Category | Item | Parameter |
| Basic Parameters | Total Power | 101KVA |
| Operating Power Supply | Three-Phase Five-Wire System 3x380 V±10%/50 Hz | |
| Operating Power Supply Mode | Quick-Connect Power Supply | |
| Cutting Speed | 100～6000 mm/min（Plasma） 50～750 mm/min（Flame） | |
| Cutting Thickness | Subject to the Plasma Power Supply 6～150mm (Regular Configurated Plasma Torch) | |
| Equipment Weight | 3500 kg(Slight Differences in Selection) | |
| Overall Dimensions (L×W×H) | 3200mmx1600mmx2300 mm | |
| Vision Performance | Vision Accuracy | ≤ 0.5 mm |
| Scanning Frame Rate | 2000 Frames/Second | |
| Standard Vision (Equipped) | RX01 | |
| Battery Performance | Battery Voltage | 48 V |
| Battery Capacity | 73ah | |
| Travel Power Supply | DC48 V | |
| Motion Performance | Robot Arm Reach | 2010 mm(Slight Differences in Selection) |
| Travel Drive | Three-Wheel Drive | |
| Control Method | Wireless Remote Control | |
| Travel Speed | 2km/h | |
| Lift Stroke | 1000 mm（Optional Configurations） | |
| Application Environment | Ambient Temperature | 0°℃ to +45°℃ (Operating); -20°℃ to +60°℃ (Transport and Storage) |
| Relative Humidity | ≤90％RH(No Condensation) |
