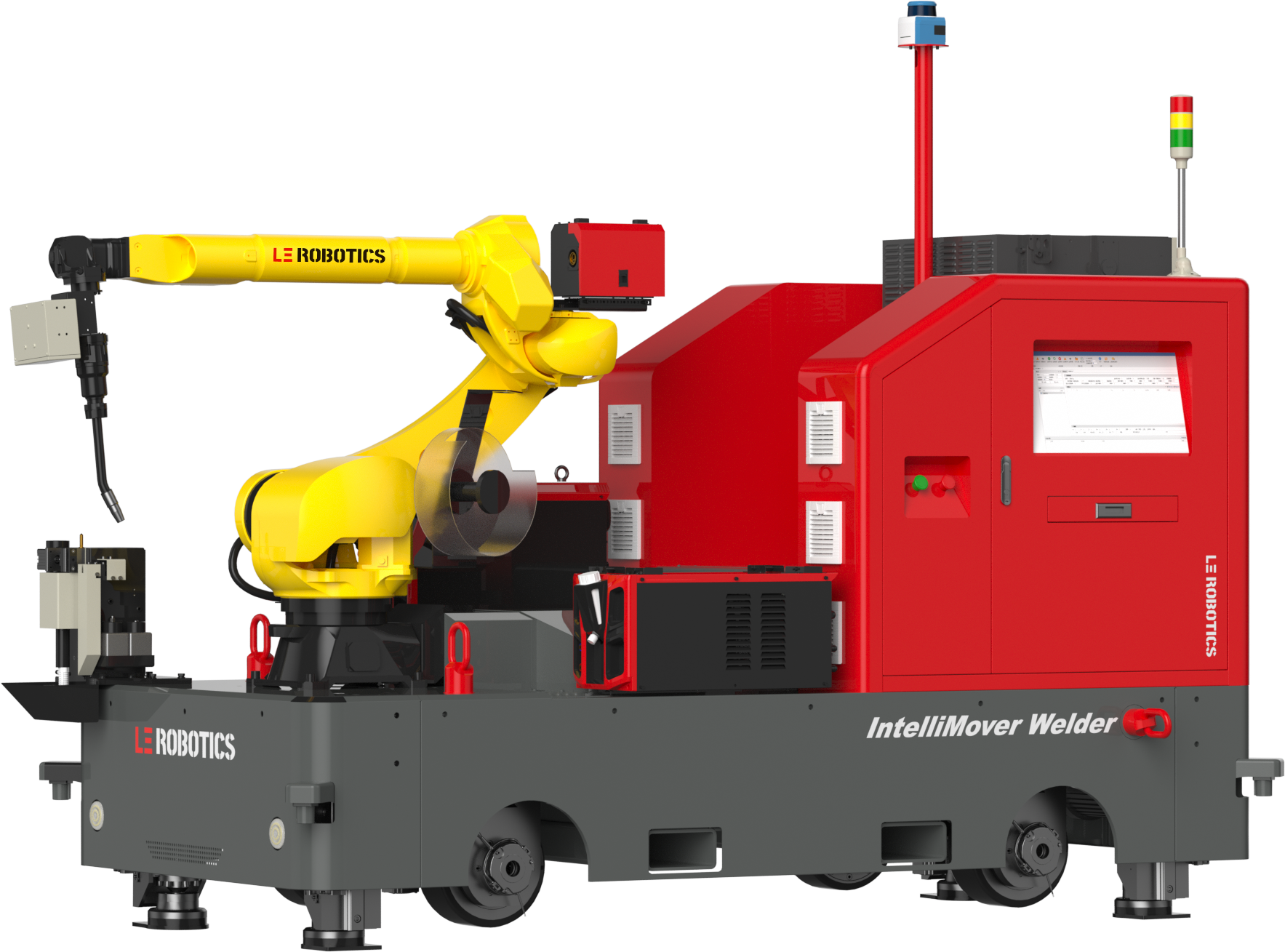

Focusing on heavy load and high-precision welding demands (e.g., large energy equipment manufacturing), cable reel power supply ensures continuous operation, and steerable wheels with laser navigation enable autonomous movement and positioning. The Loyalty AI Welding System automatically identifies workpieces and plans paths, reducing manual intervention. Its high flexibility balances heavy loads and precision, freeing manpower and enhancing high-end manufacturing quality.
Loyalty AI Welding System
Programming-free and Teaching-free
One-click Weld Seam Extraction
Automatic Calibration
Intelligent Arc Tracking
Reverse Modeling without Drawings
3D Drawing Import
Digital Twin
Automatic Recognition of Common - Shaped Workpieces
Multi - Layer and Multi - Pass Welding Process
Offline Simulation Functionality
RX Welding Process
| Category | Item | Parameter |
| Basic Parameters | Total Power | 51KVA |
| Operating Power Supply | Three-Phase Five-Wire System 3x380 V±10%/50 Hz | |
| Operating Power Supply Mode | Cable Reel | |
| Equipment Weight | 3800 kg(Slight Differences in Selection) | |
| Overall Dimensions (L×W×H) | 3400 mm×1500 mm×2400 mm | |
| Vision Performance | Vision Accuracy | ≤0.5 mm |
| Scanning Frame Rate | 2000 Frames/Second | |
| Standard Vision (Equipped) | RX01 | |
| Motion Performance | Robot Arm Reach | 2272 mm(Slight Differences in Selection) |
| Travel Drive | Steering Wheel | |
| Control Method | Lidar | |
| Travel Speed | 2.2km/h | |
| Lift Stroke | 700mm（Optional Configurations） | |
| Application Environment | Ambient Temperature | 0°℃ to +45°℃ (Operating); -20°℃ to +60°℃ (Transport and Storage) |
| Relative Humidity | ≤90％RH(No Condensation) |
